TorcUP SR Series

TorcUP SR Series

The most precise way to control and track torque

  • Total electronic control of torque and angle fastening
  • Touch sense operation and document filing
  • Durable industrial materials and construction
SKU: SR-SERIES Categories: ,

Description

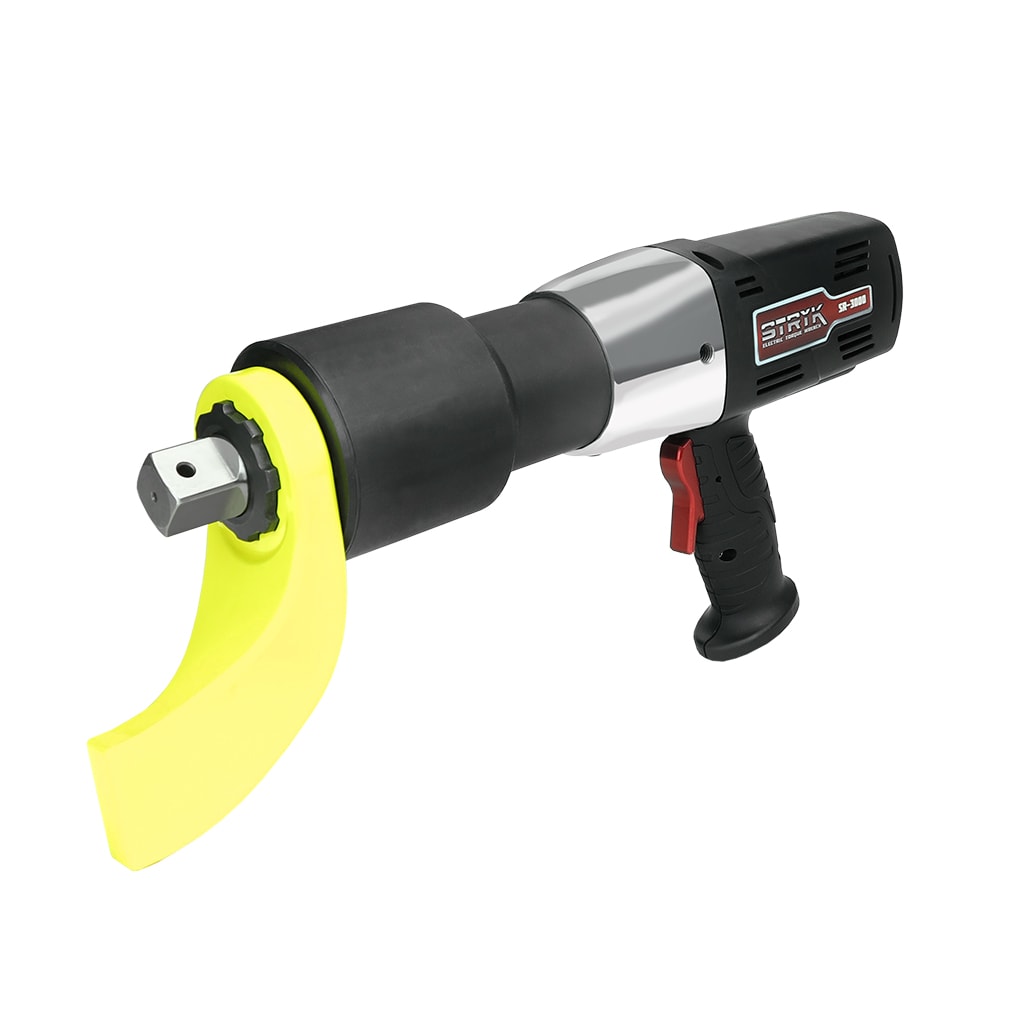

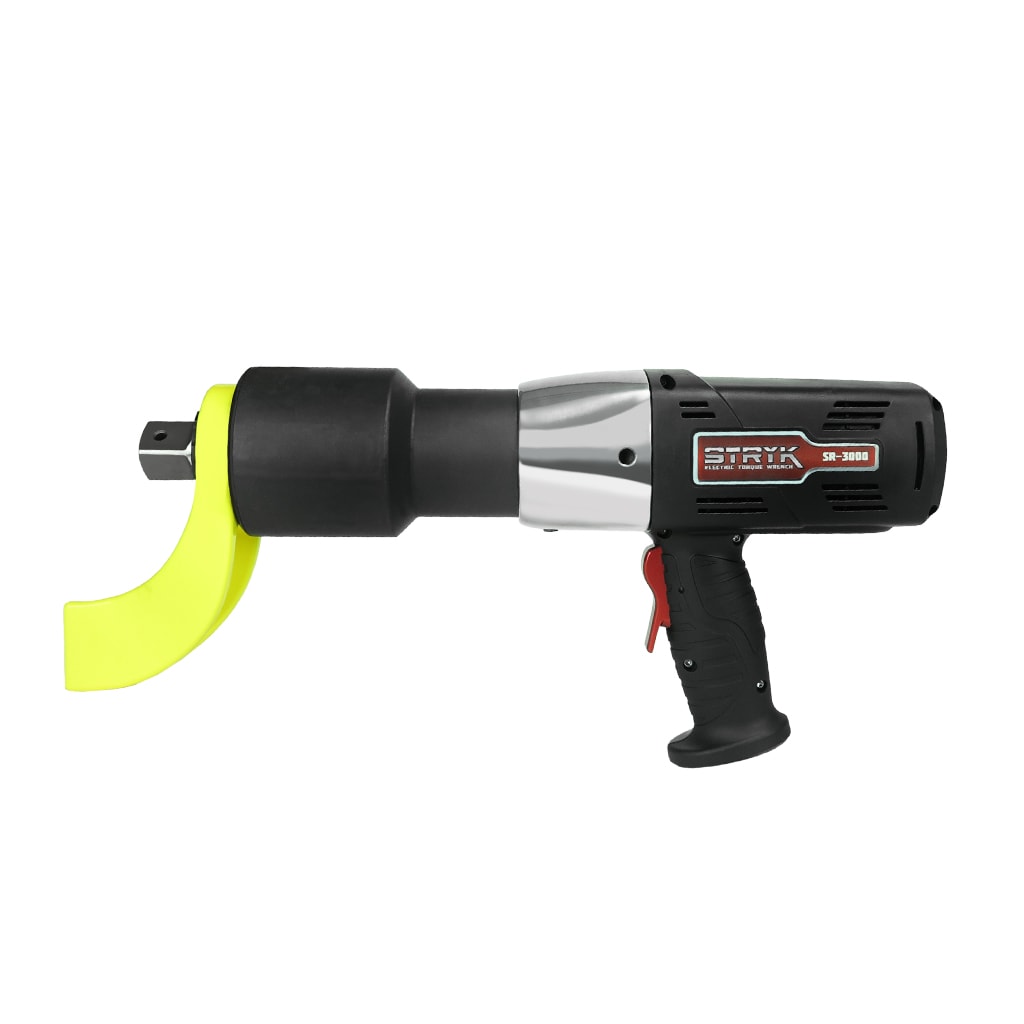

TorcUP SR Series

Electric Powered Wrench

The SR Series is more than an electric powered wrench, it is an electronic torque controlled documentation system. The TorcUP STRYK provides the most advanced tightening strategies for critical applications that require documented tight tolerance accuracy.

Provides the most advanced tightening strategies

  • Made in the USA
  • Four Models From 120 Ft/Lbs to 3,000 Ft/Lbs.
  • Lithium Ion 8.0 Ah Rechargeable Battery
  • Every Unit Calibrated In ISO17025 Laboratory
  • Genuine TorcUP Design

Advanced Electronic Control Combined With Industrial Reliability

Through the use of integrated encoders both torque and torque plus angle control are available at the touch of the screen. Angle control is available in both tighten and loosen directions for a total solution to your engineered specifications. Utilizing the same gear train design as our legendary RP Series, the STRYK outperforms all other methods in long term reliability as well as mechanical repeatability. Simply put, this is the most durable electronic torque wrench series produced.

SR Series Specifications

MODEL NUMBER SR-500 SR-1000 SR-2000 SR-3000 SR-6000
Square Drive 3/4″ 1″ 1″ 1″ 1 1/2″
Min Torque (ft/lbs) 100 200 400 600 1200
Max Torque (ft/lbs) 500 1000 2000 3000 6000
Min Torque (nm) 136 271 542 813 1627
Max Torque (nm) 678 1356 2712 4067 8135
Output Accuracy at set torque +/- 3% +/- 3% +/- 3% +/- 3% +/- 3%
Repeatability 100% 100% 100% 100% 100%
Duty Cycle 100% 100% 100% 100% 100%
Tool Weight w/o reaction arm 10.9lbs / 4.9kg 14lbs / 6.4kg 15.6lbs / 7.1kg 22.3lbs / 10.1kg 38.3lbs / 17.4kg
Standard Reaction Arm 2.05lbs / 0.93kg 2.85lbs / 1.29kg 2.85lbs / 1.29kg 2.85lbs / 1.29kg 7.85lbs / 3.56kg
RPM @ min torque 2.6 2 3 1.4 1.9
RPM @ max torque 25 10 6 3 2
Control Box 20.0lbs / 9.07kg
Power Cable 1.65lbs / .75kg
Data Cable 5.3lbs / 2.4kg

Additional information

Models

SR-1000, SR-2000, SR-3000, SR-500, SR-6000
